Stainless Steel Dental Air Polisher Prophy Mate Jet

Cavitron Prophy Jet Air Polishing System Tips

1. MY Protect™ Ⅲ Air prophy machine.The medium used is uniform sand powder particles (sodium bicarbonate, glycine, etc.) with a diameter of 30-100 microns, and the amount of sand powder should be in accordance with the maximum and minimum amount of powder warning lines in the powder box (Max or Min)

2. Before connecting the Air prophy machine, drain the air supply equipment (air compressor) and keep the air supply dry;

3. If the Powder tank or transparent cover has cracks or deep scratches, please stop using the Air prophy machine to avoid bursting due to excessive pressure

4. It is prohibited to open the Air prophy machine powder cover during use. If you need to add powder or troubleshoot, you need to stop working completely and stop the air and water supply；

5. The air prophy machine Only for dentists and dental hygienists. Personnel without professional training or relevant qualifications are not allowed to try or operate this equipment

Instructions For Use:

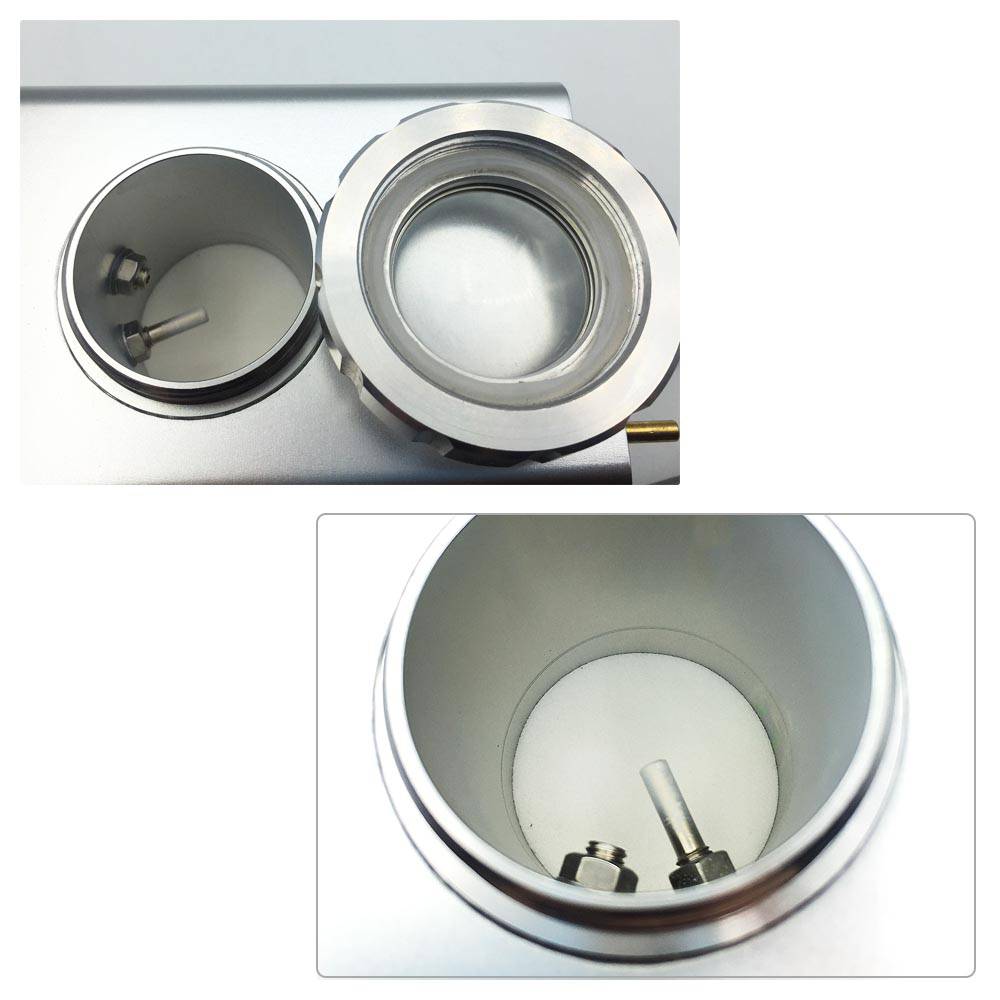

1.The blast pot and cover:
A)will turn on the lid, pour in the tank blasting powder to below the green line (no more than 1/3 of the height of the can) and
then tighten lids
B) Do not over-blasting powder 1/2 tank height, so as to avoid congestion
C) the inside of the lid with the filter, take care that it can not deform

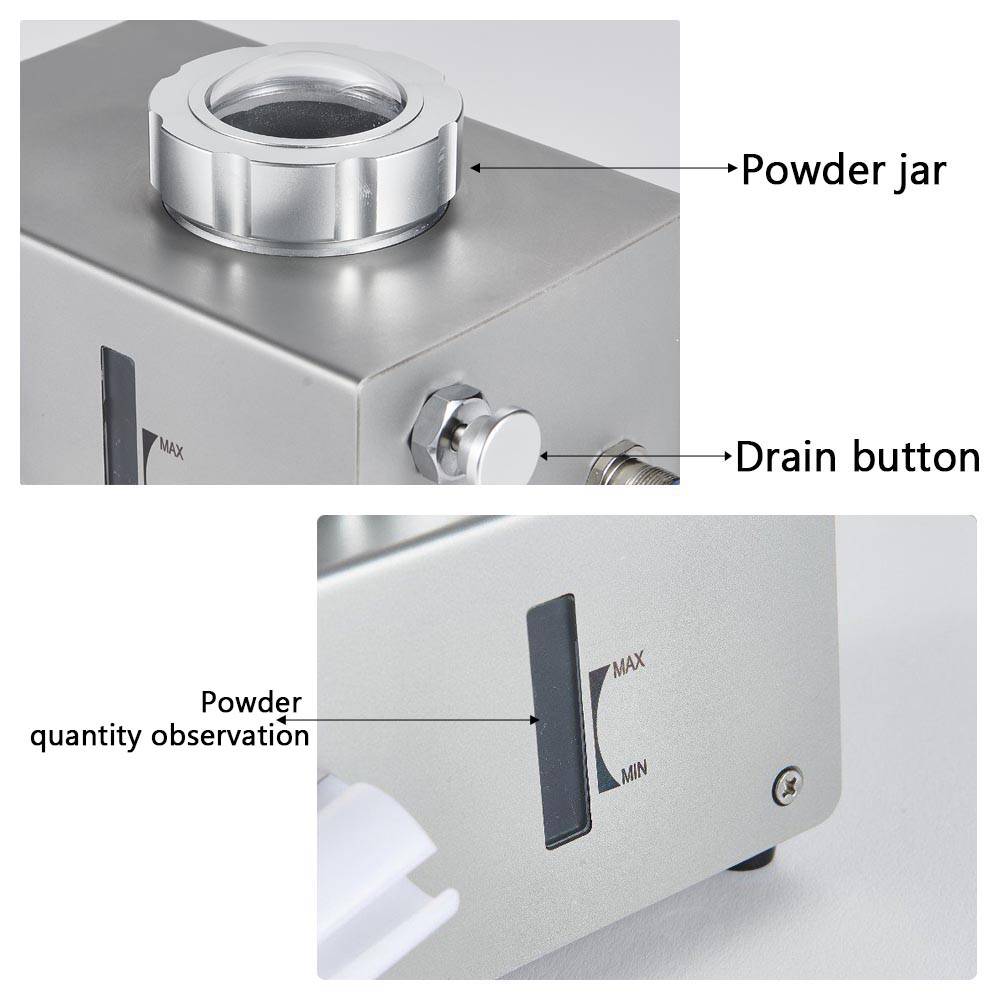

2. Drainage gas button (Drain): Before each use, press the button three times to drain gas emission filter cup gouache, powder
drier.

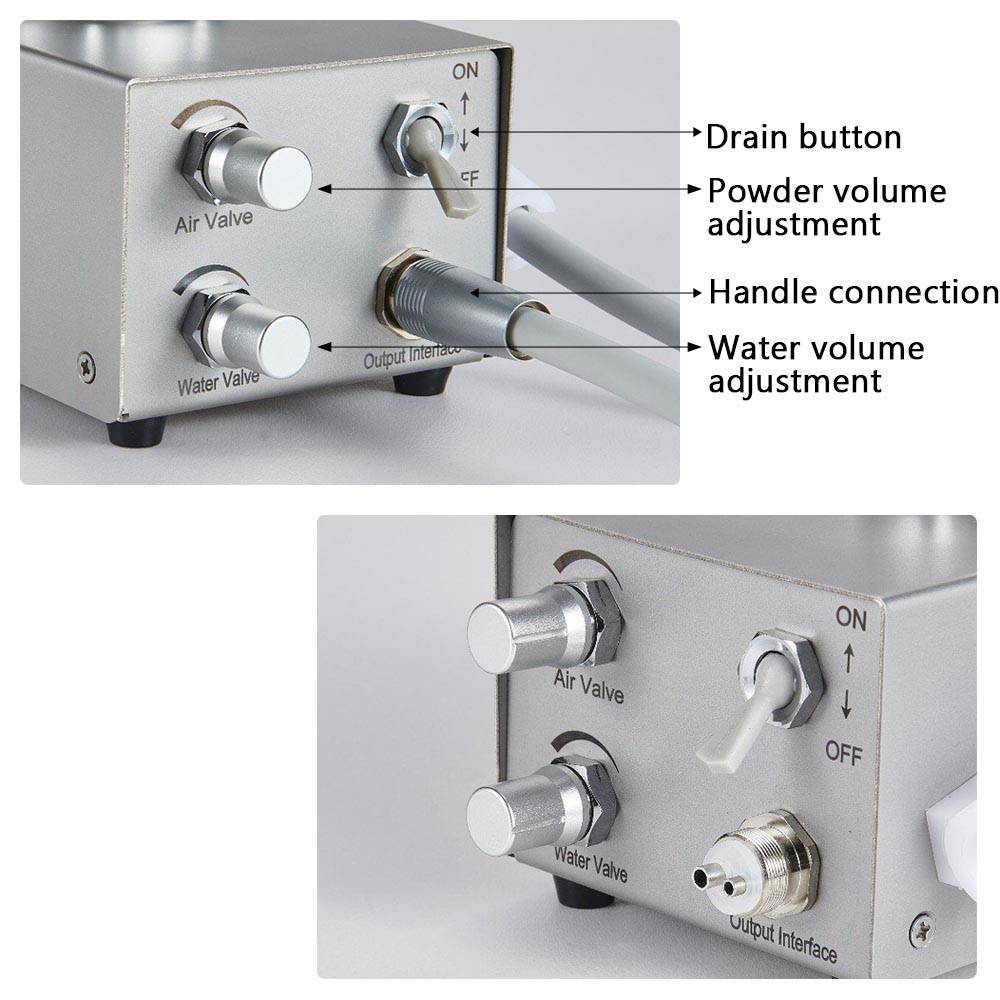

3. The amount of powder knob (Air value): clockwise adjustment
4. Water knob (Water value): according to the actual work needs to be adjusted
5. blasting switch:
A)the blasting switch according to the "ON" position, the foot switch blasting powder ejected from the nozzle handle; "OFF" to
close blast switch
B) After each use, pull the blasting switch to "OFF" position, then step on the foot switch several times, the purpose is to purge
the pipe more than powder, to avoid clogging when using the next
6. Main Connector:After high or low discharge screw connected to the host machine's four-hole joints treatment
